Product Catalog 2026
Orica Products
Commercial blasting products and initiation systems supplied by CJ MUNI Limited in Papua New Guinea.
CJ MUNI Limited is the licensed distributing agent of Orica products in PNG. Orica is a global leader in commercial explosives and blasting systems, supplying mining, quarrying, construction, and civil infrastructure projects worldwide. Orica's product portfolio is engineered to deliver safety, reliability, productivity, and precision blast outcomes.

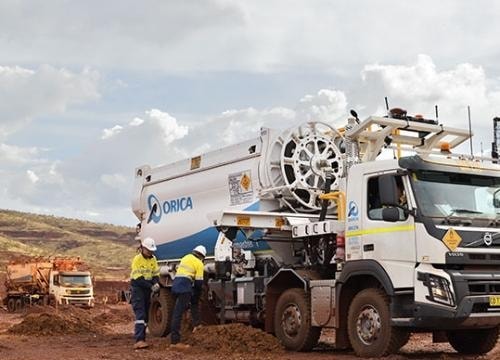

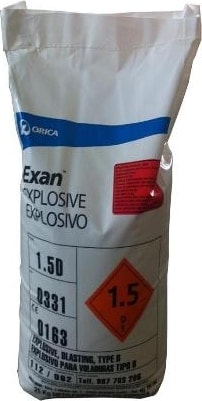

01Bulk Explosives
AMEX™ Range
- Product Category
- Bulk blasting agents
Bulk blasting agents in three forms: prilled ANFO, ANFO blended with emulsion, and pumpable emulsion. Between them the range covers dry, damp and wet holes, loaded pneumatically, by gravity or pumped.
Technical Specification – Typical
| Parameter | AMEX™ ANFO | AMEX™ Heavy ANFO | AMEX™ Emulsion Blends |
|---|---|---|---|
| Form | Prilled ANFO | ANFO + emulsion | Pumpable emulsion |
| Density (g/cc) | ~0.80–0.85 | ~0.90–1.10 | ~1.10–1.30 |
| Water Resistance | Low | Moderate | High |
| Detonation Velocity (m/s)* | 3,200–4,000 | 4,000–4,800 | 4,500–5,500 |
| Loading Method | Pneumatic / gravity | Pumped | Pumped |
| Hole Conditions | Dry | Damp | Wet / dry |
AMEX™ ANFO
- Form
- Prilled ANFO
- Density (g/cc)
- ~0.80–0.85
- Water Resistance
- Low
- Detonation Velocity (m/s)*
- 3,200–4,000
- Loading Method
- Pneumatic / gravity
- Hole Conditions
- Dry
AMEX™ Heavy ANFO
- Form
- ANFO + emulsion
- Density (g/cc)
- ~0.90–1.10
- Water Resistance
- Moderate
- Detonation Velocity (m/s)*
- 4,000–4,800
- Loading Method
- Pumped
- Hole Conditions
- Damp
AMEX™ Emulsion Blends
- Form
- Pumpable emulsion
- Density (g/cc)
- ~1.10–1.30
- Water Resistance
- High
- Detonation Velocity (m/s)*
- 4,500–5,500
- Loading Method
- Pumped
- Hole Conditions
- Wet / dry
* Values are typical, as published in the CJ MUNI / Orica Product Catalog 2026.

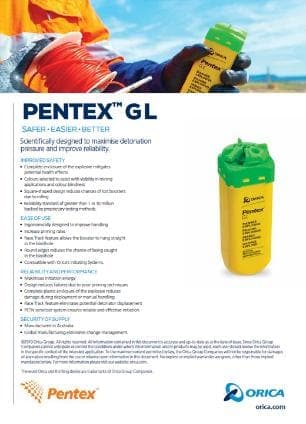

02Cast Boosters

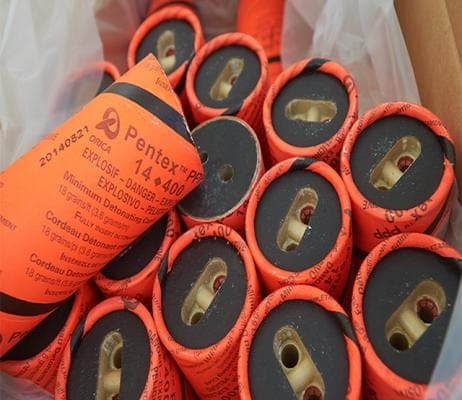

PENTEX™ Booster Range
- Product Category
- Cast boosters
Detonator-sensitive cast boosters of high-density cast explosive, supplied in typical sizes from 150 g to 2 kg, with excellent water resistance and compatibility with EXEL™, ENDURADET™ and detonating cord initiation.
Technical Specification – Typical
| Parameter | Specification |
|---|---|
| Explosive Type | High-density cast explosive |
| Detonation Velocity | >7,000 m/s |
| Density | ~1.50–1.60 g/cc |
| Sensitivity | Detonator sensitive |
| Available Sizes | 150 g, 250 g, 400 g, 1 kg, 2 kg (typical) |
| Water Resistance | Excellent |
| Initiation Compatibility | EXEL™, ENDURADET™, detonating cord |
- Explosive Type
- High-density cast explosive
- Detonation Velocity
- >7,000 m/s
- Density
- ~1.50–1.60 g/cc
- Sensitivity
- Detonator sensitive
- Available Sizes
- 150 g, 250 g, 400 g, 1 kg, 2 kg (typical)
- Water Resistance
- Excellent
- Initiation Compatibility
- EXEL™, ENDURADET™, detonating cord

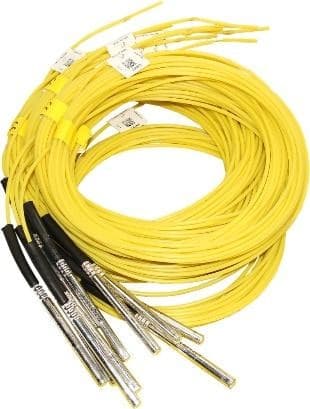

03Non-Electric Detonators

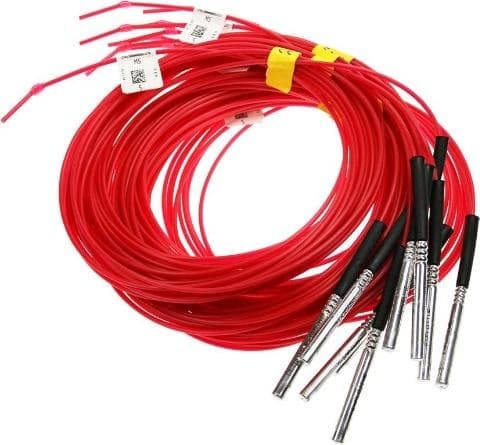

EXEL™ Millisecond Range
- Product Category
- Non-electric initiation systems
Shock-tube initiation with millisecond surface and downhole delays. The system carries no electrical circuit, so it is immune to RF, static and stray currents, and the tube is built for high abrasion and moisture resistance.
Technical Specification – Typical
| Parameter | Specification |
|---|---|
| Initiation Type | Shock tube |
| Delay Range | Millisecond delays (surface & downhole) |
| Delay Accuracy | ±3% (typical) |
| Electrical Safety | Immune to RF, static, stray currents |
| Tube Lengths | Multiple standard lengths available |
| Environmental Resistance | High abrasion & moisture resistance |
- Initiation Type
- Shock tube
- Delay Range
- Millisecond delays (surface & downhole)
- Delay Accuracy
- ±3% (typical)
- Electrical Safety
- Immune to RF, static, stray currents
- Tube Lengths
- Multiple standard lengths available
- Environmental Resistance
- High abrasion & moisture resistance

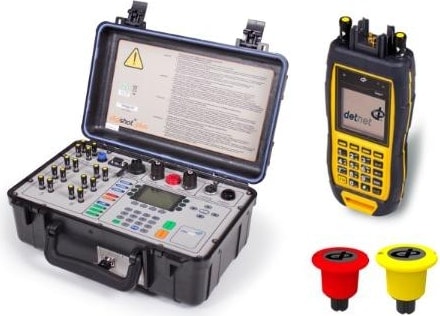

04Electronic Detonation Systems
ENDURADET™
- Product Category
- Electronic detonators
Electronic initiation with fully programmable delays and ±0.1 ms typical accuracy, supported by full circuit testing and verification. The system comprises detonators, testers and programmers, and suits high-complexity precision blasting.
Technical Specification – Typical
| Parameter | Specification |
|---|---|
| Initiation Type | Electronic |
| Delay Programming | Fully programmable |
| Delay Accuracy | ±0.1 ms (typical) |
| Diagnostics | Full circuit testing & verification |
| System Components | Detonators, testers, programmers |
| Application Complexity | High (precision blasting) |
- Initiation Type
- Electronic
- Delay Programming
- Fully programmable
- Delay Accuracy
- ±0.1 ms (typical)
- Diagnostics
- Full circuit testing & verification
- System Components
- Detonators, testers, programmers
- Application Complexity
- High (precision blasting)

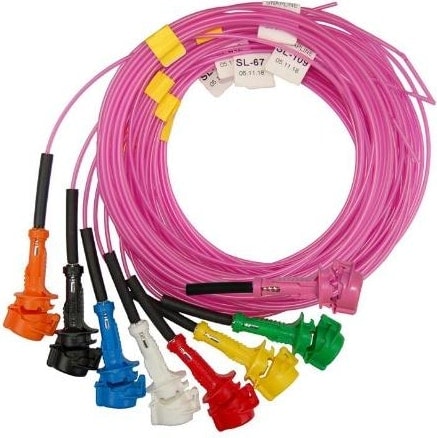

05Surface Delay Systems

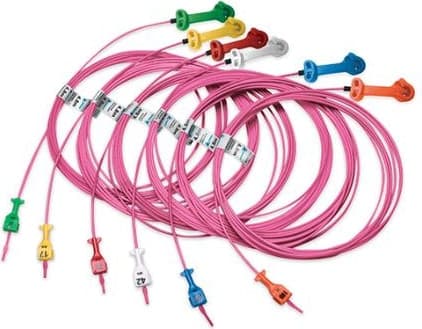

EXEL™ CONNECTADET™ Range
- Product Category
- Surface delay connectors
Non-electric surface delay connectors with factory-set delays and a snap-on, clip-based connection to EXEL™ downhole detonators — a rapid surface hook-up with low misfire risk.
Technical Specification – Typical
| Parameter | Specification |
|---|---|
| Initiation Type | Non-electric |
| Delay Increments | Factory-set surface delays |
| Connection Method | Snap-on / clip-based |
| Compatibility | EXEL™ downhole detonators |
| Installation | Rapid surface hook-up |
| Safety | Non-electric, low misfire risk |
- Initiation Type
- Non-electric
- Delay Increments
- Factory-set surface delays
- Connection Method
- Snap-on / clip-based
- Compatibility
- EXEL™ downhole detonators
- Installation
- Rapid surface hook-up
- Safety
- Non-electric, low misfire risk

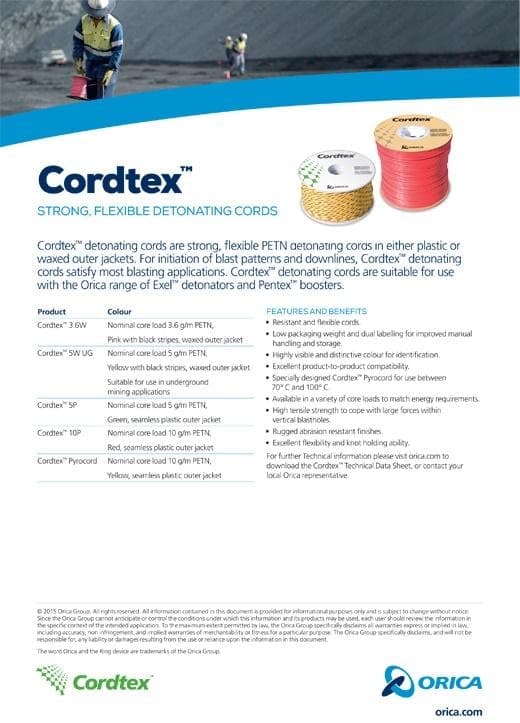

06Detonating Cord
CORDTEX™
- Product Category
- Detonating cord
Detonating cord built around a PETN core in a textile and polymer sheath, with core loads from 3 to 100 g PETN/m and a detonation velocity of about 6,500–7,000 m/s. Typically used for surface tie-ins and trunklines.
Technical Specification – Typical
| Parameter | Specification |
|---|---|
| Core Load | 3–100 g PETN/m |
| Detonation Velocity | ~6,500–7,000 m/s |
| Construction | PETN core with textile & polymer sheath |
| Tensile Strength | High |
| Water Resistance | Available |
| Typical Use | Surface tie-ins, trunklines |
- Core Load
- 3–100 g PETN/m
- Detonation Velocity
- ~6,500–7,000 m/s
- Construction
- PETN core with textile & polymer sheath
- Tensile Strength
- High
- Water Resistance
- Available
- Typical Use
- Surface tie-ins, trunklines
07Packaged Explosives

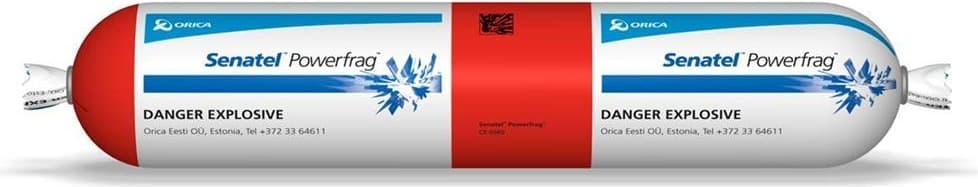

SENATEL™ Range
- Product Category
- Packaged explosives
Factory-manufactured cartridge explosives of consistent quality, ~1.10–1.25 g/cc, with moderate to high water resistance. Supplied in various typical mining sizes and initiated by detonator or booster.
Technical Specification – Typical
| Parameter | Specification |
|---|---|
| Explosive Form | Cartridge explosives |
| Density | ~1.10–1.25 g/cc |
| Water Resistance | Moderate to high |
| Cartridge Diameters | Various (typical mining sizes) |
| Initiation | Detonator or booster |
| Handling | Factory-manufactured, consistent |
- Explosive Form
- Cartridge explosives
- Density
- ~1.10–1.25 g/cc
- Water Resistance
- Moderate to high
- Cartridge Diameters
- Various (typical mining sizes)
- Initiation
- Detonator or booster
- Handling
- Factory-manufactured, consistent
Catalogue overview
Product Range Summary
The seven Orica ranges CJ MUNI supplies, and what each one is for.
| Product Range | Category | Primary Function | Key Advantage |
|---|---|---|---|
| AMEX™ | Bulk explosives | Blasting agent | Cost-effective mass blasting |
| PENTEX™ | Boosters | Initiation | Reliable energy transfer |
| EXEL™ MS | Detonators | Non-electric initiation | Safety & reliability |
| ENDURADET™ | Detonators | Electronic initiation | Precision & control |
| EXEL™ CONNECTADET™ | Surface delays | Hook-up system | Fast & simple connections |
| CORDTEX™ | Accessories | Signal transfer | Versatility |
| SENATEL™ | Packaged explosives | Confined blasting | Consistency & control |
- AMEX™
- Category
- Bulk explosives
- Primary Function
- Blasting agent
- Key Advantage
- Cost-effective mass blasting
- PENTEX™
- Category
- Boosters
- Primary Function
- Initiation
- Key Advantage
- Reliable energy transfer
- EXEL™ MS
- Category
- Detonators
- Primary Function
- Non-electric initiation
- Key Advantage
- Safety & reliability
- ENDURADET™
- Category
- Detonators
- Primary Function
- Electronic initiation
- Key Advantage
- Precision & control
- EXEL™ CONNECTADET™
- Category
- Surface delays
- Primary Function
- Hook-up system
- Key Advantage
- Fast & simple connections
- CORDTEX™
- Category
- Accessories
- Primary Function
- Signal transfer
- Key Advantage
- Versatility
- SENATEL™
- Category
- Packaged explosives
- Primary Function
- Confined blasting
- Key Advantage
- Consistency & control
Need more information about our products?
Contact CJ MUNI Limited to discuss product availability, supply requirements and project needs.
Contact CJ MUNI- info@cjmuni.com
- +675 7588 8314
- Portion 2465, Konekaru, Papa Lealea Road, Central Province, Papua New Guinea
AMEX, PENTEX, EXEL, ENDURADET, CONNECTADET, CORDTEX and SENATEL are trademarks of the Orica group of companies. CJ MUNI Limited is the licensed distributing agent of Orica products in Papua New Guinea and is not affiliated with Orica beyond that appointment. Product information is reproduced from Orica’s published material; always work from the current manufacturer documentation and safety data sheets.
